PERFORMANCE
198 KPH Top Speed
(P3 by Data Simulation)
0-150m < 6.4 Seconds
(P4 by Data Simulation)
Lap Time: 2:14 Minutes
(P2 by Data Simulation)

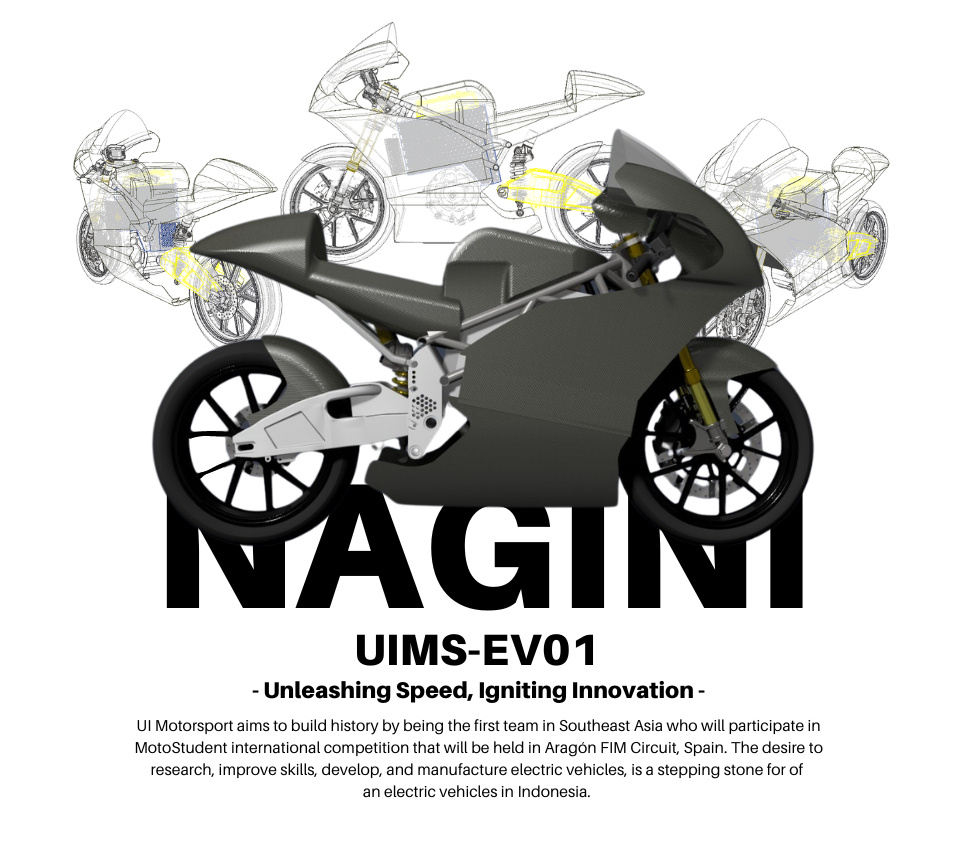

MOTORCYCLE
< 135 kg of Mass
Carbon Fiber Fairing
Aluminium Swingarm
Wheelbase 1330 m
J.Juan Brakes
Rim Size 17"
Tubular Frame Structure
Öhlins Suspension
Front Tire 90/80-17"
Rear Tire 115/75-17"
BATTERY-PACK & ELECTRIC MOTOR
7.5 kWh Battery-Pack
48 kW Power Output
PMAC Liquid-Cooled Motor
126 V Max Voltage
120 Nm Max Torque
Regenerative Braking
Li-ion Cylindrical Cell
7500 RPM Max Speed
PERFORMANCE
110 KPH Top Speed
(1st Driver Championship Shifter 150 Univ)
Lap Time: 51.4 Seconds
(1st Driver Championship Shifter 150 Univ)

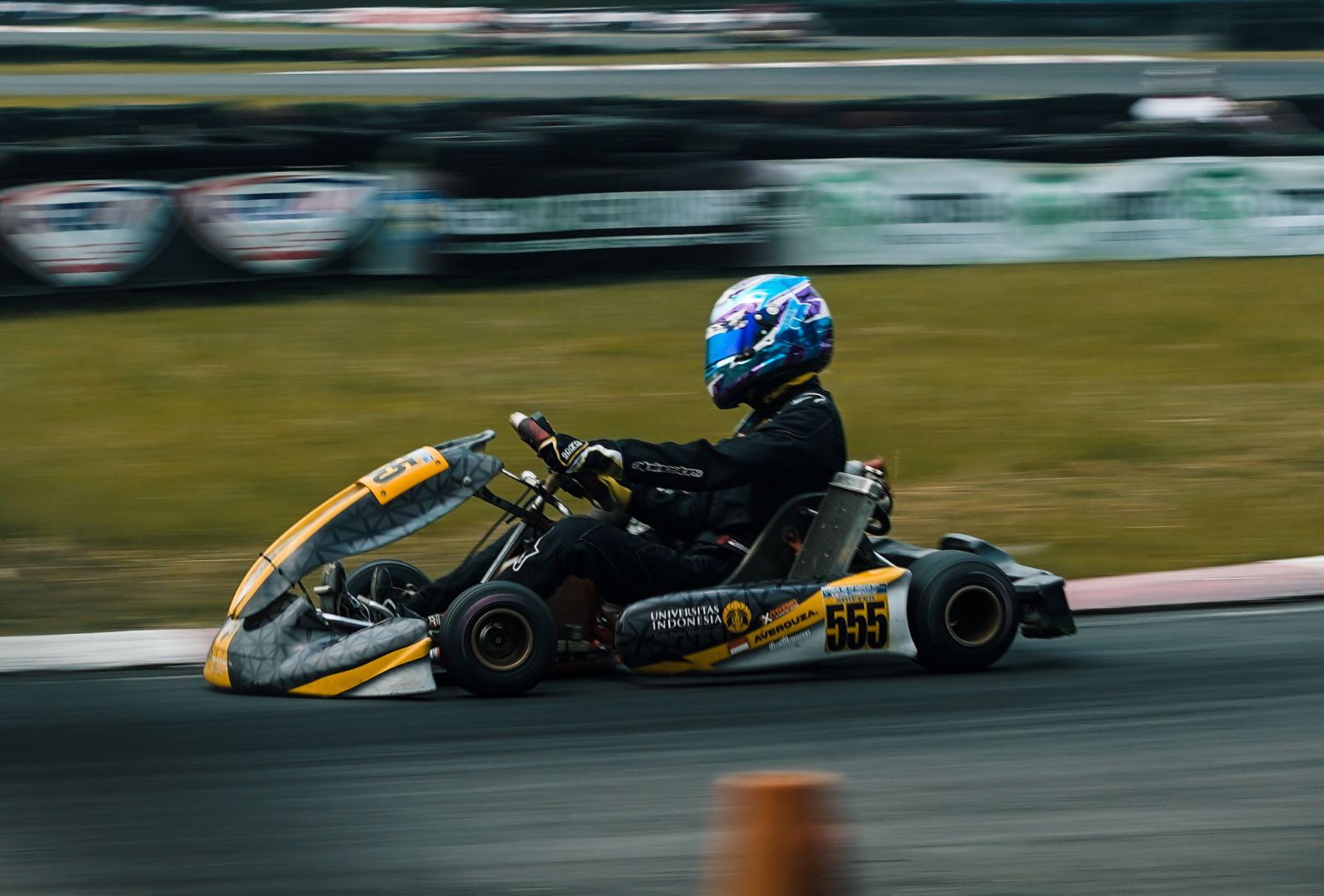

KART VEHICLE
< 90 kg of Mass
HDPE Body Material
External Water Pump
Wheelbase 1045 m
OTK Brakes
High Grip Steering Wheel
Chromoly TonyKart Frame CIK-FIA Homologated
S0 mm Rear Axle
CIK-FIA Stamp
Front Tire 10x4.5-5
Rear Tire 11x7.1-5
ENGINE & DRIVETRAIN
Kawasaki Ninja Rr 150cc Super Kips 2-Stroke Engine
Shifter Rod Mechanism
Octan RON 98 Fuel
20 Nm Torque
PERFORMANCE
110 KPH Top Speed
(3rd Shifter 150 Univ
Eshark ROK Cup Asia)
Lap Time: 54.3 Seconds
(3rd Shifter 150 Univ
Eshark ROK Cup Asia)

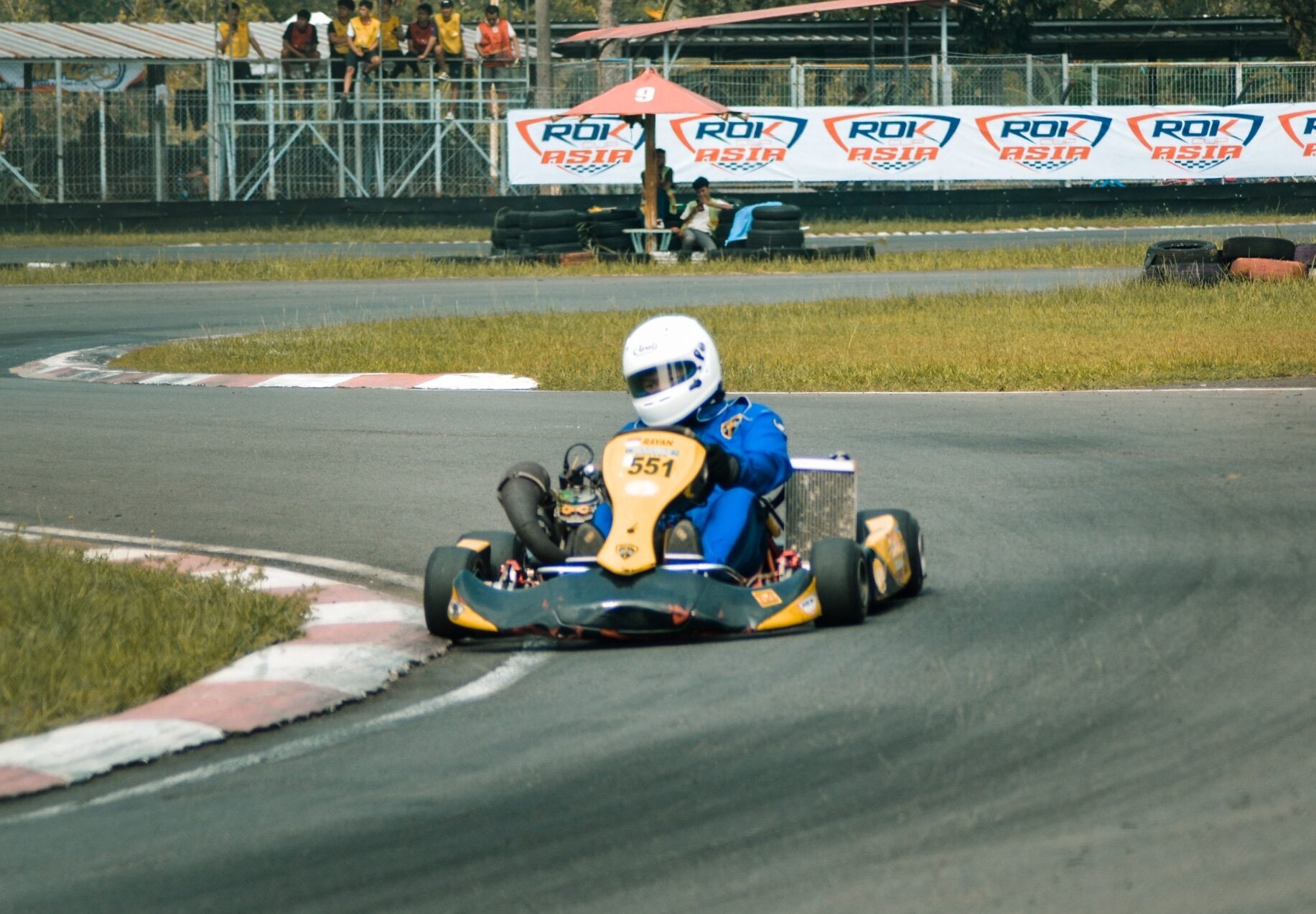

KART VEHICLE
< 90 kg of Mass
HDPE Body Material
Internal Water Pump
Wheelbase 1045 m
OTK Brakes
Grip Steering Wheel
Chromoly Intrepid Frame CIK-FIA Homologated
50 mm Rear Axle
CIK-FIA Stamp
Front Tire 10x4.5-5
Rear Tire 11x7.1-5
ENGINE & DRIVETRAIN
Kawasaki Ninja Rr 150cc Super Kips 2-Stroke Engine
Shifter Rod Mechanism
Octan RON 98 Fuel
20 Nm Torque
